Vortex
Aquagym ProPlus: Ex-Display
| Price – includes FREE site visit, FREE chemical kit, FREE customer training | £22,695 |
| Hydroglo LED Jets & Bluetooth Audio | £1,600 |
| U.V. System (Chlorine Free) & Arctic Insulation Upgrade | £1,400 |
| Hiab Delivery | £1,500 |
| Package Price | £27,195 |
| EX-DISPLAY DISCOUNT | -£6,696 |
| REDUCED TO | £20,499 |
| Optional: 5kW Spanet Heat Pump (fitted) | £2,110 |
*DELIVERY EXCLUDES THE COST OF A CRANE IF NEEDED. ALL PRICES INCLUDE 20% VAT
DISCOUNTS ALLOW FOR ANY WEAR & TEAR FROM USE OR FROM TRANSPORT AS A DISPLAY MODEL IN THE SHOWROOM.
Product Video click to watch
Product Images click to expand
Vortex
Aquagym ProPlus: Ex-Display
| Price – includes FREE site visit, FREE chemical kit, FREE customer training | £22,695 |
| Hydroglo LED Jets & Bluetooth Audio | £1,600 |
| U.V. System (Chlorine Free) & Arctic Insulation Upgrade | £1,400 |
| Hiab Delivery | £1,500 |
| Package Price | £27,195 |
| EX-DISPLAY DISCOUNT | -£6,696 |
| REDUCED TO | £20,499 |
| Optional: 5kW Spanet Heat Pump (fitted) | £2,110 |
*DELIVERY EXCLUDES THE COST OF A CRANE IF NEEDED. ALL PRICES INCLUDE 20% VAT
DISCOUNTS ALLOW FOR ANY WEAR & TEAR FROM USE OR FROM TRANSPORT AS A DISPLAY MODEL IN THE SHOWROOM.
Quick Specification
| Swim Pump Power: | 3 x 3HP pumps |
| Swim Jets | x 3 |
| Swim Flow Rate | 1,800 Lpm |
| Massage Positions: | 3 Seats |
| Massage Jets: | x 58 |
| Circulation Pump | 250w |
| Air Blower | 1000w |
| Electrics: | 32 Amp |
| Dimensions: | 398 x 231 x 130 cm |
| Water volume | 6,250 Litres |
Key Features
|
|
Related Products click to view
Air Source Heat Pump (optional)
Reduce Heating Costs by up to 60%.
Energy Efficiency Options.
|
Vortex swimspas are quality built and energy efficient. However, with the recent increase in energy costs, we are able to offer you an alternative heating solution to dramatically reduce your energy consumption. |
||
Standard:Efficient & Affordable |
Optional: £2,110Reduce Heating Costs by up to 60% |
|
|
|
|
|
Electric Heater: 3.0 kWRUNNING COST: APPROX: £85 / month*We forecast an average running cost of approximately £85 per month, which is an average over the 12 months of the year. Therefore, it will be lower in summer and higher in winter but average out across the year. Based on the in-line 2.7kW heater that comes as standard with this model. For more information on what the heating cost is based on, please scroll down to the bottom of this page. |
SpaNet Integrated Air Source Heat Pump: 5kWRUNNING COST: APPROX: £34 / month*The standard electric spa water heater turns 2 kilowatts of electricity into 2 kilowatts of heat. The Air Source Heat Pump uses 2 kilowatts of electricity to capture 6 kilowatts of solar heat energy, giving you up to 4 kilowatts of heat for free! Overall heating costs will be significantly reduced by up to 60%. The heat pump can also refrigerate (Chill) your spa water if you want it to cool down quickly in hot weather. |
|
|
|
||
What’s Included & Optional Features:
Closed hidden
INCLUDES: FREE Site Visit, FREE Chemical Kit & FREE Customer Training
FREE Site Visit.With every Vortex Swimspa purchased we offer a FREE site visit to check delivery access and advise the customer on the products chosen location within the garden. |
 |
FREE Chemical Kit.Every Swimspa we install comes with a full chemical starter kit of the chemicals you will need to sanitise and maintain your water balance. We will then train you in its correct care and maintenance. |
|
|
FREE Customer Training.1st Visit – delivery of the swim spa into position. Then unpackage, clean and check before we begin to fill with customers water supply. Your electrician will be on-site to connect the swimspa to the new power supply. 2nd Visit – usually the next day (if filled) we power up the swim spa, then train the customer in water maintenance, product functions and best practice. 3rd Visit – after you have had a week to enjoy the swim spa. A manager will return to undertake final training and listen to your feedback your overall experience. |
|
|
YOUR PRIVATE SWIM TEST:
Open 7 days a week, please call to arrangeWe have 5 swim spas on display. Three swim spas are filled, heated and ready for your to try. Please contact us to arrange a private appointment. This can be done through the day or after 5 pm when we are closed so you are not on show to the public. We will be here to welcome you and answer your questions. 01291 690614 |
||
 #image_title |
DELIVERY OPTIONS:
Hiab Delivery from UK stockist to customer.The Hiab lorry will deliver the swim spa to customers home and lift from its rear up and over and into position. In 2023 Hiab delivery to customers costs £1,500 inc. VAT for postcodes NP, CF, HR, GL & LD. £1,700 inc VAT for postcodes SA, SY, BA, WR. |
||
|
|
||
Hiab Delivery to Site and Crane lift into position.The Hiab will deliver the swim spa to the site where the hired crane will then lift off the back of the Hi-ab lorry and safely land in its final position. We will provide quotations for the crane hire once a site visit has been undertaken. Hiab prices are stated above. |
||
|
|
||
HiAb Delivery to Oyster, then we bring to the customer on a trailer.When you live in a location with difficult access. We can arrange for the Hiab to deliver the swim spa to Oyster Pools. We can then hire a large flatbed trailer and 4 x 4 vehicles to tow the swim spa on a trailer to your home. We can then also arrange the hire a machine on-site to lift from the trailer into position, such as a Telehandler. Hiab prices stated above, all other hires of equipment will be quoted for. |
||
|
|
||
HEATING OPTIONS:
INCLUDED: In-Line Electric Heaters: 3kW – SpaNett™ thermal tuning.All 2021 onwards Vortex Swimspas have fitted with SpaNett™ control system and thermal tuning. The Vortex control system will adapt and tune itself to the thermal properties of your spa pool and its environment, day to day, season to season, this will reduce ‘on-demand heating. |
|
|

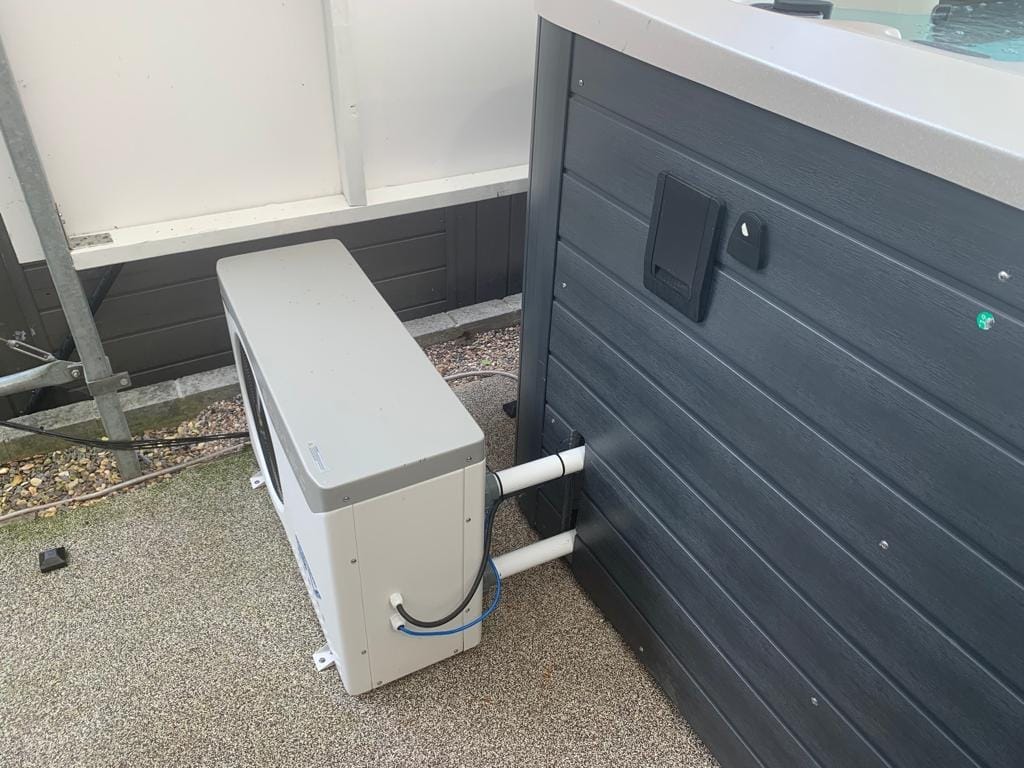

OPTIONAL: SpaNett™ Air Souce Heat Pump – heating/cooling water.Adding a Vortex Hybrid Heat Pump to your swim spa will give you the lowest possible heating costs. A conventional spa pool heater turns 1 kilowatt of electricity into 1 kilowatt of heat. The Vortex hybrid heat pump turns 1 kilowatt of electricity into 5 kilowatts of heat, giving you up to 4 kilowatts of heat for free! Even accounting for the cost of running your pumps, overall running costs will be reduced by more than 60%. Over the life of your swim spa, this will lead to savings of thousands of pounds in a lifetime of enjoyment.
|
COVER OPTIONS:
INCLUDED: Thermal coversHigh quality thermal vinyl covers are included in the price of each Vortex Swimspa. These covers come in sections that be lifted off and stored to use your swim spa. They are strong, durable and great at trapping the heat within your model when not in use. |
|
|
OPTIONAL: Roll on, Roll off thermal cover. (On display on show site)The revolutionary one-piece design makes a complete seal on top of the swim spa…locking in the heat, saving energy consumption and cost. The Cover design enables one person to roll the cover off the swim spa in less than 60 seconds…Accessing the pool for aqua therapy and fitness. Manufactured with the highest quality commercial grade materials, providing a strong, durable, lockable safety cover. SEE PRICES ON THE ROLLAWAY PAGE OF THE WEBSITE. |
OPTIONAL: Covana™ Legend. (On display on show site)With the Covana Legend, your swim spa will be more accessible and easier to use than ever! In almost any weather condition, the cover can be retracted with the simple turn of a key and after only a few seconds, you can dive in and enjoy it without ever having to struggle with a cumbersome cover (It’s fully automated!). |
FACTORY FITTED OPTIONS:
Bluetooth Audio System: £800. (Fitted on Display model)An OPTIONAL all-in-one, purpose-built, high-definition sound system with Bluetooth connectivity so you can stream music or audio directly to your spa from your favourite apps. . |
||
|
|
||
Ultra Violet (UV) system – Go Chlorine Free: £750 (Fitted on Display model)The ultra-violet light sterilizing system can kill up to 99.9% of viruses and bacteria in spa water. Using a UV Sterilizer system will allow you to not require Chlorine to kill bacteria. |
||
|
|
||
Arctic Pack Insulation Upgrade: £ 650 (Fitted on Display model)Arctic Installation is the ultimate level of insulation available. It increases the thickness of the perimeter insulation to 50mm, gives unsurpassed heat retention and has the lowest possible running costs. |
||
|
|
||
HydroGlow LED Jets: £ 800 (Fitted on Display model)By making each jet core translucent we were able to backlight it with multi-coloured, attractive LED lighting |
||
|
|
||
Contact us today
Email us your questions
Need help deciding?
We are here to help
Vortex Swimspa - Design IdeasThis video is a great free resource for swim spa design ideas. It’s packed with lots of great ideas you could use in your location and shows the whole process from start to finish. |
||
|
|
||
What Power Supply Will I Need?The Vortex Aquagym ProPlus is configured to be a 32 Amp supply. Therefore, you will require a qualified electrician to connect the hot tub to an RCD-protected standalone supply. Complete with an isolation switch. ProPlus are 32 amp. |
|
 |
Heating Details
We forecast an average electrical running cost of approximately £85 per month, which is an average over the 12 months of the year. Therefore, it will be less during the summer and higher over the winter, but it will average out across the year.
Based upon (as of July 2023 and subject to change):
- 34p / kW / h
- 1 water change per year
- 33°C water temperature all year round
- Cover on when not in use
- Usage > Ave. 3 x 20-minute sessions per week
Finance Details.
Credit is subject to status and affordability. Terms and conditions apply. Oyster Pools & Hot Tubs Ltd, Raglan Garden Centre, Raglan, Usk. NP15 2BH. (FCA Register No 704291). Trading as Oyster Pools & Hot Tubs Ltd is a credit broker and not the lender and is authorised and regulated by the Financial Conduct Authority. Credit is provided by Novuna Personal Finance, a trading style of Mitsubishi HC Capital UK PLC. Authorised and regulated by the Financial Conduct Authority.
Additional Information
Three massage seatsThis model features three different massage seats with pump power adjustment, air controls, jet power control. Plus aromatherapy air blower. |
 |
|
Neck and shoulder therapy collarsThis Vortex model has a built-in therapy neck collar. This means that not only will your neck and shoulders be cushioned but internal jets will massage and soothe at the same time. |
 |
|
Multi-coloured LED lightingThe bright multi-coloured LEDs are perfect for setting the tone for your evening. Alternatively, you can put it on colour change mode for a more upbeat, party atmosphere. |
 |
|
Built-in drinks holdersYou will never be far away from your beverage as the Vortex swimspa features non-slip built-in drinks holders, so you don’t have to keep hold of your drink or climb out to take a sip. |
 |
|
SMARTStream Bluetooth Audio System (optional)SMARTStream Bluetooth audio with a sub-woofer. The hidden, state of the art transducer speaker system leaves the spa surfaces clear of obstacles and reduces moving parts. |
 |
|
Individual jet controlsTo give you the most control over your experience, each seat has individual jet controls. This means you can set it to your own comfort level. |
 |
|
Laminar Jets water featureThe laminar jets smooth and uninterrupted flow of water is both relaxing and mesmerising. It’s also a ‘splash-free’ feature. |
 |
|
Sensual Aromatherapy SystemExclusive to our Vortex models. All you need to do is choose your favourite aromatherapy fragrances out of the 12 available and then enjoy breathing in the relaxing aroma whilst your muscles are being soothed by the powerful jets. |
 |
|
PureZone CD Ozone Water Clarifying SystemThis is one of the safest and most economical ways of cleaning the water as there a no harsh chemicals added to the water and the process doesn’t affect the taste, smell or PH level of the water making it child safe. |
||
Thermabond 4 layer shell constructionAll Vortex models use a 4 layer, 8 step Thermabond lamination process not found in most spas. This process includes the curing of the shell in a temperature and humidity-controlled oven. This is absolutely vital if the shell of the spa is to last the lifetime of ownership. |
 |
|
Dual-layer insulationThe Vortex dual layer insulation covers both the outer cabinet and the shell. This is the most efficient way to insulate. The dual layer system keeps the heat from the pumps and plumbing, reduces noise and provides a warm layer between the water and the outside of the spa. |
 |
|
Built To Last:Permaframe – is a timber-free design, is impervious to rot, mildew or vermin damage and is designed to last indefinitely. Toughbase – is built strong enough to take the weight of the swim spa, water and people. It prevents vermin from getting inside the workings of your spa and is virtually indestructible to ensure years of trouble-free usage.
|
 |
|
Duraflex plumbing – specially designed for use in high-performance swim spas. Duraflex incorporates a coil of rigid PVC within its walls that allows the piping to flex but not kink. |
 |
Specification
| Name | Aquagym Pro Plus |
|---|---|
| Size (cm) | 398 x 231 x 130 |
| Capacity / Seats | 3 seats |
| Jet Pump | 3hp x 3 |
| Programmable Circulation Pump | 250W |
| Swim Flow Rate | 1,800lpm |
| Total Jets (Stainless Steel) | 58 (3 Swim Jets) |
| Spa Controller | SpaNettTouch Screen |
| Air Blower | 1,000W |
| Variable Output Heater | 3kW max |
| Perimeter Insulation | √ |
| Dual-layer Insulation | √ |
| Intelligent Thermal Tuning | √ |
| Thermobond, 4 Layer Shell Construction | √ |
| Thermoclad Cabinet | √ |
| Purezone Micro Filtration | √ |
| Purezone Ozone Water Clarifier | √ |
| Duraflex Plumbing | √ |
| Moulded, High Impact Base | √ |
| Spa Health Indicator | √ |
| Adjustable Aromatherapy | √ |
| Water Cascade | √ |
| Underwater Flood Lighting | √ |
| Lockable Hard Cover | √ |
| Neck Therapy Collar | √ |
| Stainless Steel Jets | √ |
| Backlit Laminar Jets | √ |
| Hydroflow Stainless Steel Jets | √ |
| Individual Seat Pressure Controls | √ |
| Backlit Drink Holders | √ |
| Perimeter and Cabinet Lighting | √ |
| Hybrid Heat Pump | optional: FITTED |
| Hydroglow Jet & LED Lighting | optional: FITTED |
| Hydravibe Bluetooth Stereo System | optional: FITTED |
| Wifi App-based Remote Control | optional |
| Arctic Pack Insulation | optional: FITTED |
| Purezone UV Water Purifier | optional: FITTED |
| Electrical (max) | 32amps |
| Dry Weight | 950 kg |
| Filled Weight | 7,200 kg |
| Water Volume | 6,250 L |
| Name | Aquagym Pro Plus |
Warranty
EX-DISPLAY MODEL DISCOUNTS ALLOW FOR DIMINISHED WARRANTY.
| Warranty | Aquagym |
|---|---|
| Non Pro rata Structural | 10 years |
| Non Pro rata Acrylic surface | 5 years |
| Plumbing, Heater & Jet * | 5 years |
| Pump & Equipment * | 2 years |
*The first 12 months includes parts and labour cost. After 12 months parts only. Full written details on request.
