Product Video  click to view

Product Image

Quick Spec & Price

Dimensions: 449 x 231 x 130 cm
7.5 HP SWIM POWER: 3 x 2.5 hp pumps
3 SWIM JETS: .  1,500 Lpm
SPA END: 2 x Seats 1 x Lounger 36 x Jets
Electric Supply: 32 Amps
RRP £22,999
12 Months Buy Now Pay Later

50% Deposit. Terms & Conditions Apply.              All prices include 20% VAT

HIDDEN
Priced Options & Delivery Prices
Factory Fitted Options
Bluetooth Audio System +£350
Cover Options:
Covana™ Legend +£17,495
Roll-A-Way Cover +£4,199
Heating Option:
Air Source Heat Pump (fitted) 8.8 kW: +£2,750
Construction Options:
Electrical connection +£POA
Groundworks /  Concrete Base +£POA
Delivery Options:
Hiab Delivery Lorry +£1,500*
Mobile Crane +£2,500*
*Crane & Hiab Prices Subject to Site Visit & Quotation.     All Inc VAT
Quick Specification
Dimensions: 449 x 231 x 130 cm
  1.3 m Deep
Litres
6,120
Weight: Kg 3 x Swim Jets
1.3m: Dry 1,150
1.3m: Filled 7,350
Heater: 3 kW
Electric Supply 32 Amps

Product Images  click to expand

Quick Specification

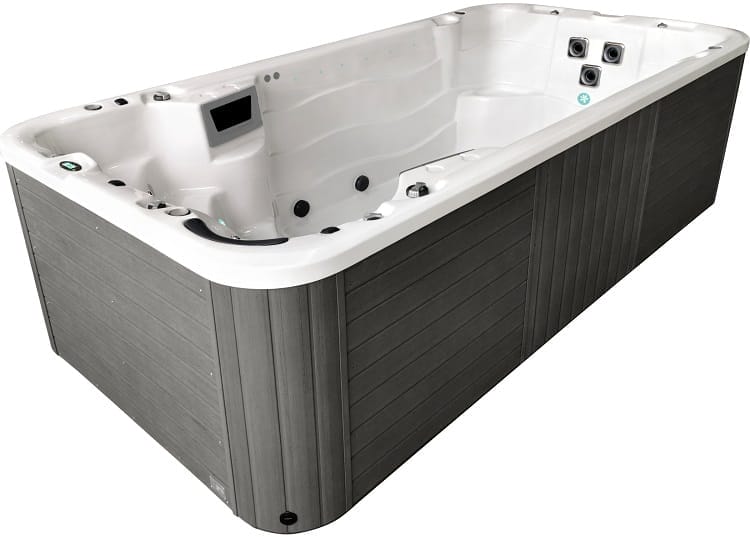

Play, chill out or enjoy a workout – the choice is yours with the Soul 4500™ swim spa. Both boast five sculpted spa seats plus a spacious swim section, a comfortable hydrotherapy recliner, a hydrotherapy seat, a sport seat and two rejuvenation seats. The model has three powerful swim jets that are ideal for swimming or fitness training.

Quick Spec & Price

Dimensions 449 x 231 x 130 cm
7.5 HP SWIM POWER: 3 x 2.5 hp pumps
3 SWIM JETS: .  1,500 Lpm
SPA END: 2 x Seats 1 x Lounger 36 x Jets
Electric Supply: 32 Amps
RRP £22,999
12 Months Buy Now Pay Later

50% Deposit. Terms & Conditions Apply.              All prices include 20% VAT

HIDDEN
Priced Options & Delivery Prices
Factory Fitted Options
Bluetooth Audio System +£350
Cover Options:
Covana™ Legend +£17,495
Roll-A-Way Cover +£4,199
Heating Option:
Air Source Heat Pump (fitted) 8.8 kW: +£2,750
Construction Options:
Electrical connection +£POA
Groundworks /  Concrete Base +£POA
Delivery Options:
Hiab Delivery Lorry +£1,500*
Mobile Crane +£2,500*
*Crane & Hiab Prices Subject to Site Visit & Quotation.     All Inc VAT
Quick Specification
Dimensions: 449 x 231 x 130 cm
  1.3 m Deep
Litres
6,120
Weight: Kg 3 x Swim Jets
1.3m: Dry 1,150
1.3m: Filled 7,350
Heater: 3 kW
Electric Supply 32 Amps

Key Features

  Controls – SpaNet™ ■  Hydroflow S/Steel Jets
  Perimeter Insulation ■  Backlit Drink Holders
■  Thermobond, 4 Layer Shell ■  LED Fountain Jets
■  Maintenance-Free Cabinet ■  Underwater LED Lighting
■  Easy Clean Filters ■  Air Blower Bubbles
■  Ozone Water Clarifier ■  Drinks Holder
■  Moulded, High Impact Base ■  Hard Insulating Covers
■  Great Warranty ■  Lockable Covers





Click To View PDF Brochure

Video

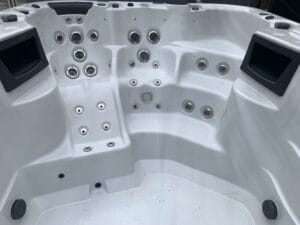

Installation Examples

FREE Access Visit Available

Contact us now to arrange a no-obligation visit to check your delivery access and installation requirements.

Soul 4000 Swimspa On Display

FREE Private Swim Test

When you are considering purchasing a high-value product it is essential to make sure the swim matches your performance level.  Also, to evaluate the hydro-massage, space and other features.

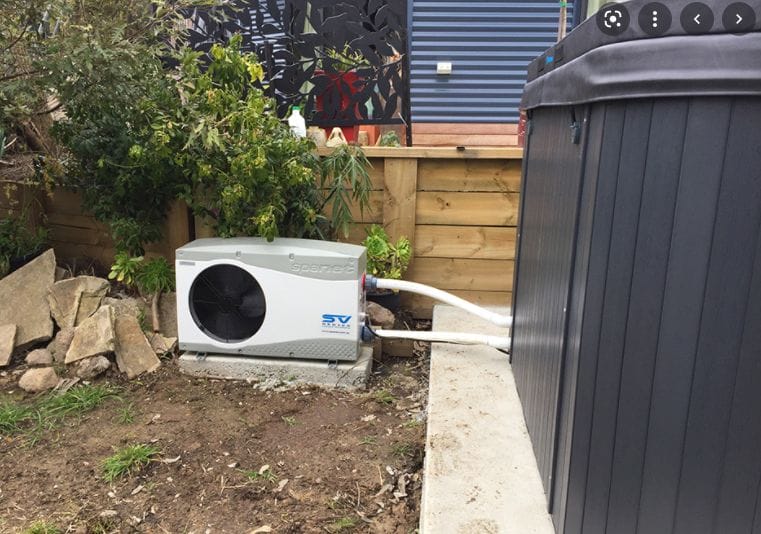

Air Source Heat Pump Option:



Reduce Heating Costs by up to 60%.





Energy Efficiency Options.

Sun & Soul swimspas are quality built and energy efficient.  However, with the recent increase in energy costs, we can offer you an alternative heating solution to dramatically reduce your energy consumption.

Standard:

Efficient & Affordable

Electric Heater: 3.0 kW

RUNNING COST: APPROX: £95 / month*



Optional:

Reduce Heating Costs by up to 60%

SpaNet Integrated Heat Pump: 8.8 kW

RUNNING COST APPROX: £40 / month*



Air Source Heat Pump

DETAILS

The forecasted running cost is an average over the 12 months of the year. Therefore, it will be lower in summer and higher in winter but average out across the year. Based on the 1 in-line 3kW heater that comes as standard with this model. For more information on what the heating cost is based on, please scroll down to the bottom of this page.





DETAILS

The standard electric spa water heater turns 2 kilowatts of electricity into 2 kilowatts of heat. The Air Source Heat Pump uses 2 kilowatts of electricity to capture 6 kilowatts of solar heat energy, giving you up to 4 kilowatts of heat for free! Overall heating costs will be significantly reduced by up to 60%. The heat pump can also refrigerate (Chill) your water if you want it to cool down quickly in hot weather.













































Related Search Categories  click to view

Contact us today

Email us your questions

Need help deciding?

We are here to help

LOGO





Swimspa - Design Ideas

This video is a great free resource for swim spa design ideas. It’s packed with lots of great ideas you could use in your location and shows the whole process from start to finish.



What Power Supply Will I Need?

The Sun & Soul 4500 is configured to be a 32 Amp supply. Therefore, you will require a qualified electrician to connect the hot tub to an RCD-protected standalone supply. Complete with an isolation switch.











Heating Details

We forecast an average electrical running cost of approximately £80 per month, which is an average over the 12 months of the year. Therefore, it will be less during the summer and higher over the winter, but it will average out across the year.

Based upon (as of July 2023 and subject to change):

  • 34p / kW / h
  • 1 water change per year
  • 33°C water temperature all year round
  • Cover on when not in use
  • Usage > Ave. 3 x 20-minute sessions per week



Finance Details.

Credit is subject to status and affordability.  Terms and conditions apply.  Oyster Pools & Hot Tubs Ltd, Raglan Garden Centre, Raglan, Usk. NP15 2BH.  (FCA Register No 704291). Trading as Oyster Pools & Hot Tubs Ltd is a credit broker and not the lender and is authorised and regulated by the Financial Conduct Authority. Credit is provided by Novuna Personal Finance, a trading style of Mitsubishi HC Capital UK PLC. Authorised and regulated by the Financial Conduct Authority.





Additional Information

LOGO

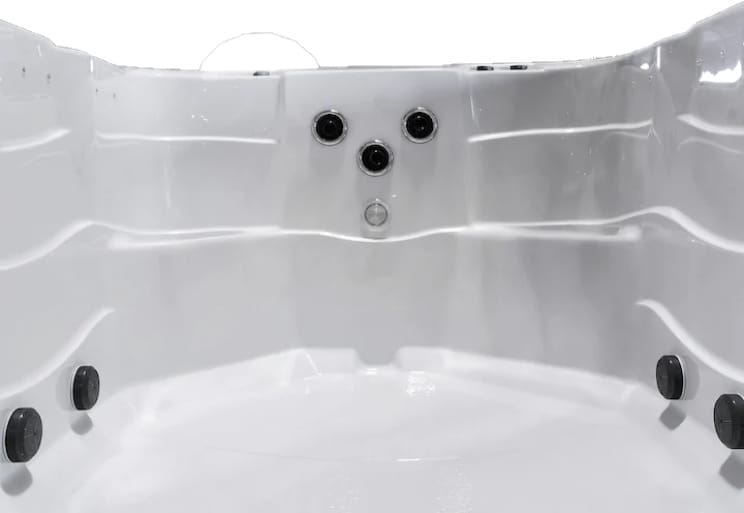

Lounger & Two massage seats

This model features three different massage seats with pump power adjustment, air controls, jet power control. Plus aromatherapy air blower.

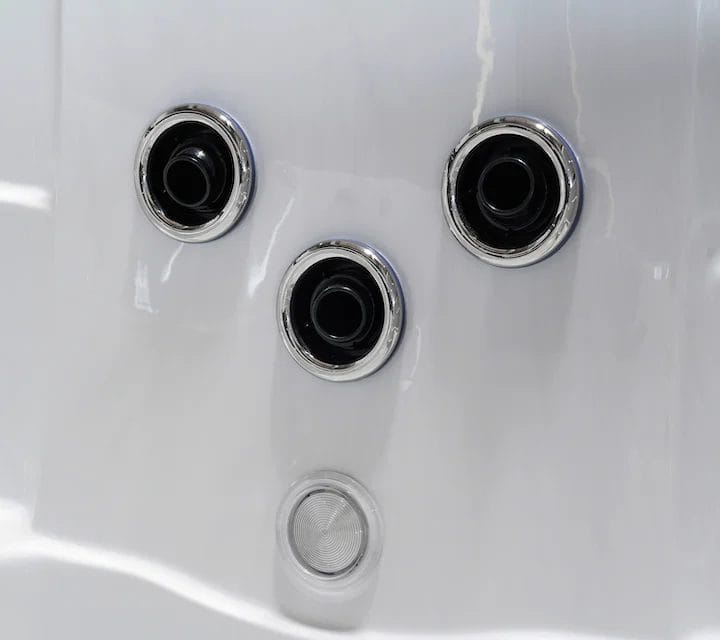

Individual jet controls

We recognise that each person likes different pressures and speeds when it comes to a hot tub. To give you the most control over your experience, each seat has individual jet controls. This means you can set it to your own comfort level.


Multi-coloured LED lighting

The bright multi-coloured LEDs are perfect for setting the tone for your evening. Alternatively, you can put it on colour change mode for a more upbeat, party atmosphere.

Built-in drinks holders

You will never be far away from your beverage as the Vortex swimspa features non-slip built-in drinks holders, so you don’t have to keep hold of your drink or climb out to take a sip.

Individual jet controls
To give you the most control over your experience, each seat has individual jet controls. This means you can set it to your own comfort level.
Laminar Jets water feature

The laminar jets smooth and uninterrupted flow of water is both relaxing and mesmerising. It’s also a ‘splash-free’ feature.

PureZone CD Ozone Water Clarifying System

This is one of the safest and most economical ways of cleaning the water as there a no harsh chemicals added to the water and the process doesn’t affect the taste, smell or PH level of the water making it child safe.

Thermabond 4 layer shell construction

All  models use a 4 layer, 8 step Thermabond lamination process not found in most spas. This process includes the curing of the shell in a temperature and humidity-controlled oven. This is absolutely vital if the shell of the spa is to last the lifetime of ownership.

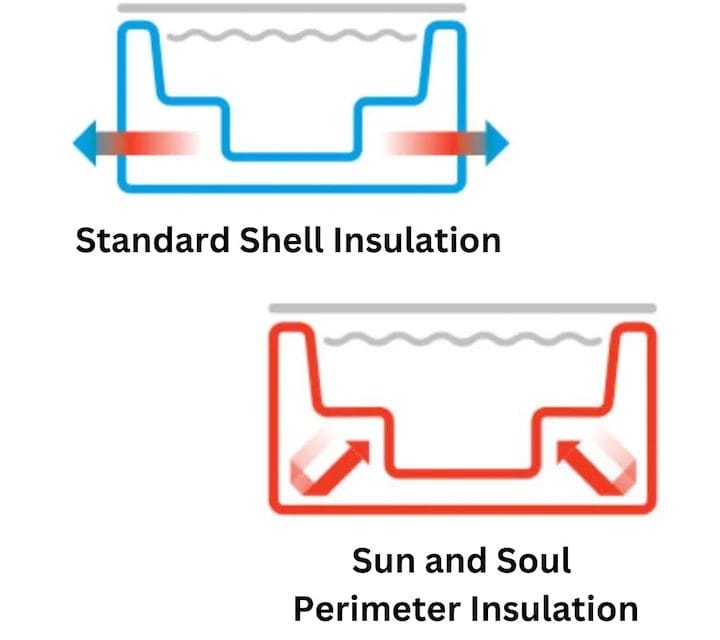

Dual-layer insulation

The Sun & Soul dual-layer insulation covers both the outer cabinet and the shell. This is the most efficient way to insulate. The dual-layer system keeps the heat from the pumps and plumbing, reduces noise and provides a warm layer between the water and the outside of the spa.

Built To Last:

Permaframe – is a timber-free design, is impervious to rot, mildew or vermin damage and is designed to last indefinitely.

Toughbase – is built strong enough to take the weight of the swim spa, water and people. It prevents vermin from getting inside the workings of your spa and is virtually indestructible to ensure years of trouble-free usage.



Duraflex plumbing – specially designed for use in high-performance swim spas. Duraflex incorporates a coil of rigid PVC within its walls that allows the piping to flex but not kink.
High Density Locking Thermal Insulating Cover

Sun & Soul spas come complete with heat shrink-sealed high-density foam liner to prevent water ingress and extend the life of the cover.  They are also fitted with 4 cabinet-mounted locks to secure the cover when no in use.


Long Life Cabinet

The composite cabinets are not only beautiful but also sturdy and built to withstand the test of time. They are resistant to rot, mould and mildew.  Easy to clean with a damp cloth with fresh water.



Specification

Sun & Soul: Soul 4500
  • Size: 449 x 231 x 130 cm
  • Seating: 3 people,
  • Massage Jets x 36
  • Circulation pump: 250W
  • Swim Jet pumps 2.5HP x 3
  • Air Blower 1000W
  • Heater 3kW
  • Volume: 6,120 litres
  • Dry weight 1,150 kg
  • Filled weight of 7,350 kg
  • Purezone CD Ozone water clarifier
  • 3 Massage Seats
  • LED Multicolour lights
  • Drink holders
  • Maintenance-free cabinet
  • Superior USA-made Aristech acrylic
  • Thermobond 4-layer shell construction
  • Timber free ‘no rot’ Permaframe
  • High-impact moulded ABS base
  • Duraflex ‘no kink’ PVC plumbing
  • Underwater LED floodlight
  • SPANET™control panel & controller
  • Stainless steel jet casings
  • Individual seat air controls
  • Hydroflow stainless steel spinning jets
  • High-density lockable Insulating hardcover
  • Dual Layer Insulation
LOGO

Warranty

LOGO

Warranty Sun & Soul
Frame 10 years
Structural 10 years
Acrylic surface 5 years
Plumbing, heater, jets and equipment 2 years
Pump(s) 2 years
Cabinet 1 year
Labour/ call-out 1 year



WARRANTIES FOR OTHER COMPONENTS

The fuses, headrests, cabinet finish and filters are warranted to be free of defects in workmanship or materials for 30 days following delivery. The factory-installed o-zone water purification system is warranted against malfunction due to defects in workmanship or materials for one year from the original date of purchase.

All stereo-related components (receiver, speakers, subwoofer, stereo media locker, power supply etc.) are warranted against malfunction due to defects in workmanship or materials for one year from the original date of delivery.
All other factory-installed components not mentioned specifically including, but not limited to the jets, diverter valves, LED Lighting systems, filter housing and mechanical components are warranted against malfunction due to defects in workmanship or materials for two years from the original date of purchase

GENUINE JACUZZI® PARTS & ACCESSORIES

Genuine Sun & SoulTM brand parts & accessories (Genuine Parts or Accessories) are built to our highest standards of quality, durability and performance, and they are designed to work with your spa to ensure optimal performance and function. This Warranty is void if we or our designated representative determine that the spa has been subjected to damage or failure due to the installation of parts and/or accessories that are not Genuine Parts or Accessories.
This disclaimer includes but is not limited to filters, UV-C bulbs, ozone systems, repair parts and other accessories.

WARRANTY LIMITATIONS

The product guarantee is only valid for products used in the United Kingdom and installed in a domestic environment. This Warranty is void where defects occur from:

  • General wear and tear, or alteration;
  • Repair by a person not authorised by us or our authorised dealer;
  • Misuse or negligent use which includes any installation, operation or maintenance of the spa other than in accordance with the instructions contained in the owner’s manual provided with the spa, including but not limited to the failure to maintain proper water chemistry and chemical balance and the use of abrasive or improper cleaners or parts which are not Genuine Parts and Accessories;
  • Damage arising in transit by a carrier that is not provided by us or our authorised dealer
  • The commercial use of the products.
  • Some parts of the spa are manufactured from natural materials (or man-made materials replicating natural materials) which may change in the ordinary course of their
    lifespan; this may affect the look and feel of the spa. As such these are not regarded as defects, and include (without limitation):
    • Products that have yellowed or changed colour in sunlight;
    • Products that have failed as a result or the ingress of moisture that are typical as a consequence of use.
  • This Warranty does not provide cover for insulating covers, or any item attached to or installed on the spa by you.
  • You accept liability for repair work performed by anyone other than by us or our representative.
THIS WARRANTY DOES NOT AFFECT  YOUR STATUTORY RIGHTS


Jacuzzi® Spa and Bath Ltd. Jacuzzi® Group Head Office. 8 Turnberry Park Road, Gildersome, Morley, Leeds LS27 7LE
www.sunandsoulspas.co.uk

.
