Vortex Spas™
AquaGym Max 2024
Swimspa Pool
IN STOCK
Product Video click to view
1 x Sterling Silver Shell & Coastal Grey Cabinet: In-Stock | ||
450 x 230 x 150 cm | ||
PRO PLUS: 9 hp. 3 Swim Jets. 1,800 Lpm | £25,795 | |
ClearLift: Automatic Cover (fitted) | £6,490 | |
Bluetooth Audio & Arctic Insulation Upgrades | £1,700 | |
HiAb Delivery: 10m reach: | £1,500 | |
Package Price | £35,485 | |
SAVE | £2,500 | |
NOW | £32,985 |
All prices include 20% VAT
HIDDEN
Priced Options & Delivery Prices
Factory Fitted Options | ||
Bluetooth Audio System | +£800 | |
Arctic Insulation Upgrade | +£900 | |
WiFi Remote Control via App on phone | +£550 | |
Cover Options: | ||
Clear Lift Automatic Cover (FItted) | +£6,490 | |
Covana™ Legend | +£17,495 | |
Roll-A-Way Cover | +£4,199 | |
Heating Option: |
||
Air Source Heat Pump (fitted) | 8.8 kW: +£2,750 | |
Construction Options: | ||
Electrical connection | +£POA |
|
Groundworks / Concrete Base | +£POA | |
Delivery Options: | ||
Hiab Delivery Lorry. Postcodes: NP, CF,BS,HR,GL,LD. |
+£1,500* | |
Mobile Crane | +£2,500* | |
*Crane & Hiab Prices Subject to Site Visit & Quotation. All prices include VAT. |
Quick Specification

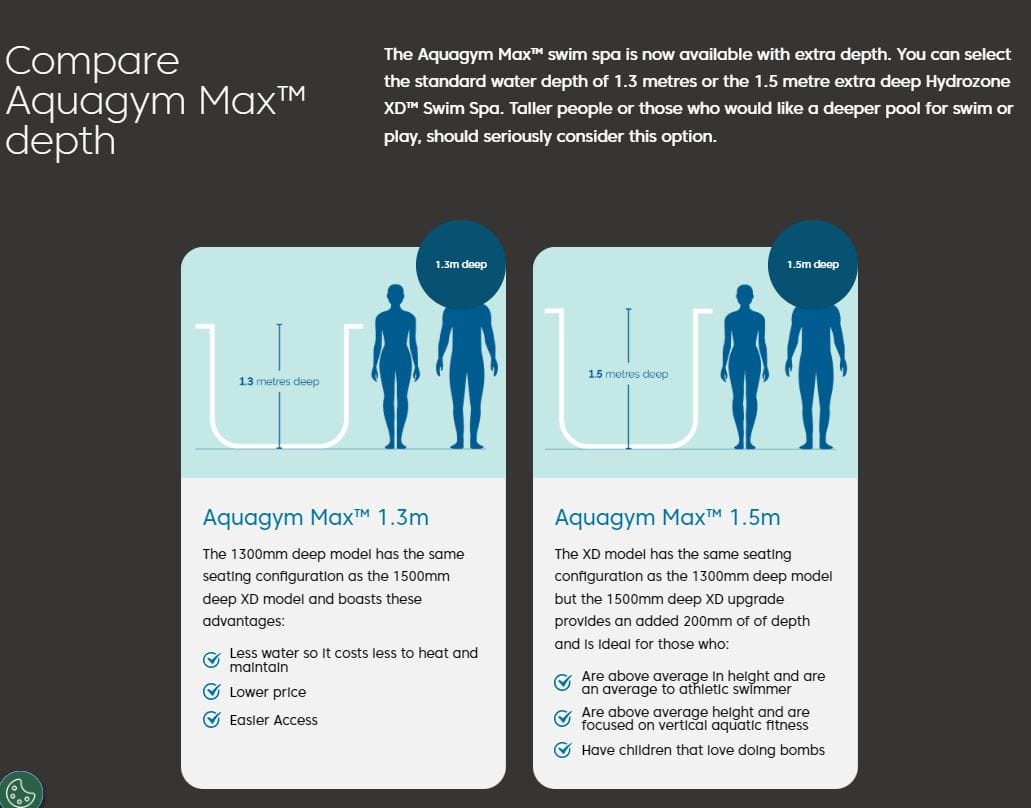

Dimensions: | 450 x 230 x 130 cm | 450 x 230 x 150 cm | |
1.3 m Deep | 1.5m Deep | ||
Litres |
6,136 | 7,750 | |
Weight: Kg | Pro | Pro Plus | Extreme |
1.3m: Dry | 958 | 1,105 | 1,150 |
1.3m: Filled | 7,133 | 7,280 | 7,325 |
1.5m: Dry | 1,135 | 1,185 | 1,215 |
1.5m: Filled | 8,924 | 8,974 | 9,004 |
Heater: | 3 kW | ||
Electric Supply | 32 Amps | 32 Amps | 40 Amps |
Product Images click to expand
Vortex Spas™
AquaGym Max 2024
Swimspa Pool
IN STOCK
Quick Specification
The Aquagym Max™ is the ultimate mid-sized, single-zone swim spa and provides similar features and functionality as our smaller Aquagym™ model, however, the Aquagym Max™ is longer which provides a larger swim zone and it features the famous Vortex™ hydrotherapy lounger.
Prices
1 x Sterling Silver Shell & Coastal Grey Cabinet: In-Stock | ||
450 x 230 x 150 cm | ||
PRO PLUS: 9 hp. 3 Swim Jets. 1,800 Lpm | £25,795 | |
ClearLift: Automatic Cover (fitted) | £6,490 | |
Bluetooth Audio & Arctic Insulation Upgrades | £1,700 | |
HiAb Delivery: 10m reach: (NP, CF, BS,HR,GL,LD) | £1,500 | |
Package Price | £35,485 | |
SAVE | £2,500 | |
NOW | £32,985 |
All prices include 20% VAT
HIDDEN
Priced Options & Delivery Prices
Factory Fitted Options | ||
Bluetooth Audio System | +£800 | |
Arctic Insulation Upgrade | +£900 | |
WiFi Remote Control via App on phone | +£550 | |
Cover Options: | ||
Clear Lift Automatic Cover (Fitted) | +£6,490 | |
Covana™ Legend | +£17,495 | |
Roll-A-Way Cover | +£4,199 | |
Heating Option: |
||
Air Source Heat Pump (fitted) | 8.8 kW: +£2,750 | |
Construction Options: | ||
Electrical connection | +£POA |
|
Groundworks / Concrete Base | +£POA | |
Delivery Options: | ||
Hiab Delivery Lorry: Postcodes: NP, CF,BS,HR,GL,LD. |
+£1,500* | |
Mobile Crane | +£2,500* | |
*Crane & Hiab Prices Subject to Site Visit & Quotation. All prices include VAT. |
Quick Specification
Dimensions: | 450 x 230 x 130 cm | 450 x 230 x 150 cm | |
1.3 m Deep | 1.5m Deep | ||
Litres |
6,136 | 7,750 | |
Weight: Kg | Pro | Pro Plus | Extreme |
1.3m: Dry | 958 | 1,105 | 1,150 |
1.3m: Filled | 7,133 | 7,280 | 7,325 |
1.5m: Dry | 1,135 | 1,185 | 1,215 |
1.5m: Filled | 8,924 | 8,974 | 9,004 |
Heater: | 3 kW | ||
Electric Supply | 32 Amps | 32 Amps | 40 Amps |
Key Features
■ Controls – SpaNet™ Touch Screen | ■ Cabinet LED Lighting |
■ Perimeter & Dual Layer Insulation | ■ Backlit Drink Holders |
■ Thermobond, 4 Layer Shell | ■ Hydroglow LED Jet Lighting |
■ Maintenance-Free Cabinet | ■ Hydroflow S/Steel Jets |
■ Purezone Easy Clean Filters | ■ LED Fountain Jets |
■ Purezone Ozone Water Clarifier | ■ Neck Massage Collar |
■ Purezone UV Water Purifier | ■ Underwater LED Lighting |
■ Chlorine Free Water | ■ Air Blower Aromatherapy |
■ Water Cascade Feature | ■ Full body lounger |
■ Moulded, High Impact Base | ■ Hard Insulating Covers |
■ Great Warranty | ■ Lockable Covers |
Click To View PDF Brochure |
Your Swim Power Level:
PRO PLUS ►►► 3 x Swim Jets 3 x 3hp Pumps Total: 9hp Swim Flow Rate: 1,800 Lpm |
New & Exclusive
ClearLift™ Automatic Cover
Details
ClearLift™ is an automatic motorised system that opens and closes your swim spa cover at the turn of a key. It consists of a cover and frame that are attached to the swim spa and the key controller.
As a priced option when ordering the ClearLift™ you can select the LEFT or RIGHT side for the cover to fold into.
Requires an 80 cm gap on the chosen side.
IMPORTANT:
ClearLift™ can only be fitted at the time of manufacturer. You cannot buy it separately and fit it at a later date. You can not install it on a previously purchased Vortex™ swim spa.
ClearLift™ is an optional motorised system that opens and closes your swim spa cover at the turn of a key.
It cannot be retrofitted.

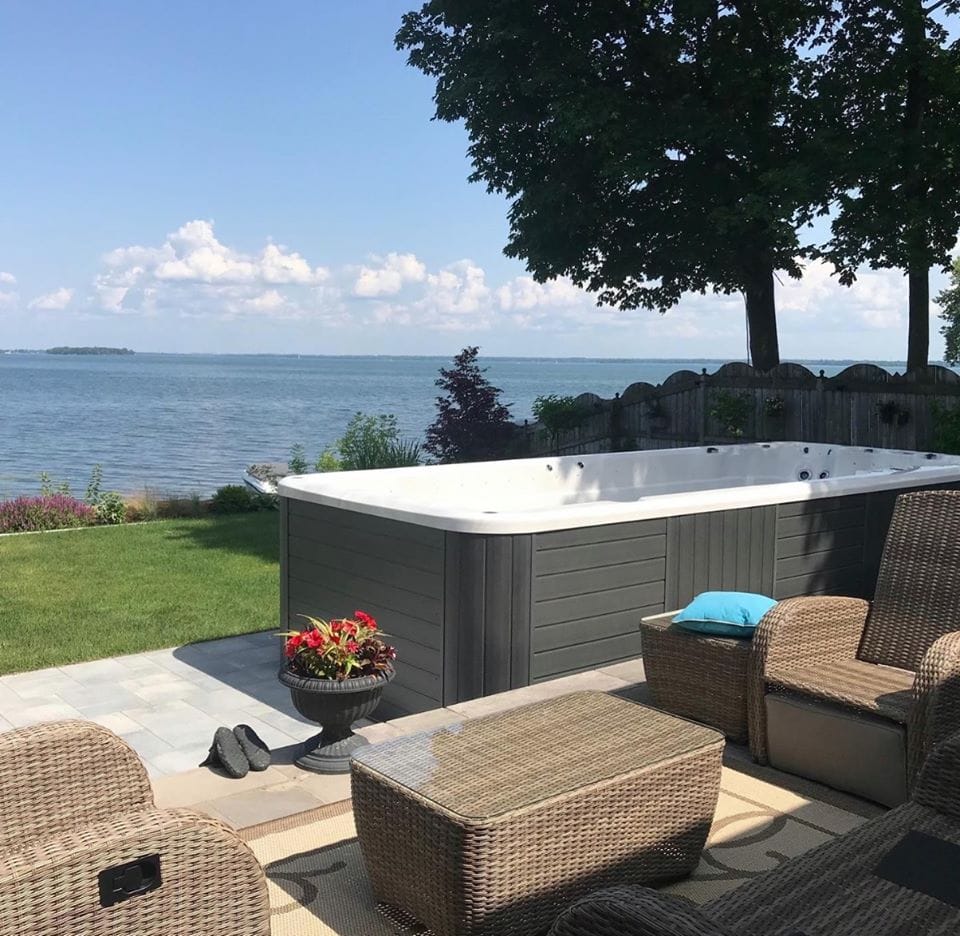

Installation Examples
This is a great resource as it’s packed with lots of great ideas on how you could install a swimspa in your garden. If you have any questions please contact us.
AquaGym Max 1.5m ProPlus On Display
FREE Private Swim Test Available
When you are considering purchasing a high-value product it is essential to make sure the swim matches your performance level. Also to evaluate the hydro-massage, space and other features.
Air Source Heat Pump Option:
Reduce Heating Costs by up to 60%.
Energy Efficiency Options.
Vortex swimspas are quality built and energy efficient. However, with the recent increase in energy costs, we can offer you an alternative heating solution to dramatically reduce your energy consumption. |
||
Standard:Efficient & AffordableElectric Heater: 3.0 kWRUNNING COST: APPROX: £92 / month* |
Optional:Reduce Heating Costs by up to 60%SpaNet Integrated Heat Pump: 8.8 kWRUNNING COST APPROX: £37 / month* |
|
|
||
DETAILSThe forecasted running cost is an average over the 12 months of the year. Therefore, it will be lower in summer and higher in winter but average out across the year. Based on the 1 in-line 3kW heater that comes as standard with this model. For more information on what the heating cost is based on, please scroll down to the bottom of this page.
|
|
Related Search Categories click to view
Contact us today
Email us your questions 🙂
Need help deciding?
We are here to help
Vortex Swimspa - Design IdeasThis video is a great free resource for swim spa design ideas. It’s packed with lots of great ideas you could use in your location and shows the whole process from start to finish. |
||
|
||
What Power Supply Will I Need?The Vortex Aquagym Max is configured to be a 32-40 Amp supply. Therefore, you will require a qualified electrician to connect the hot tub to an RCD-protected standalone supply. Complete with an isolation switch. Pro & ProPlus are 32 amp. The Extreme model is 40 Amp. |
||
Heating DetailsWe forecast an average electrical running cost of approximately £92 per month, which is an average over the 12 months of the year. Therefore, it will be less during the summer and higher over the winter, but it will average out across the year. Based upon (as of July 2023 and subject to change):
|
||
Finance Details:Credit is subject to status and affordability. Terms and conditions apply. Oyster Pools & Hot Tubs Ltd, Raglan Garden Centre, Raglan, Usk. NP15 2BH. (FCA Register No 704291). Trading as Oyster Pools & Hot Tubs Ltd is a credit broker and not the lender and is authorised and regulated by the Financial Conduct Authority. Credit is provided by Novuna Personal Finance, a trading style of Mitsubishi HC Capital UK PLC. Authorised and regulated by the Financial Conduct Authority. |
Additional Information
Fully reclined loungerThis model features a reclined lounger. This allows for total body immersion for a full hydrotherapy experience. |
||
Individual jet controlsTo give you the most control over your experience, each seat has individual jet controls. This means you can set it to your own comfort level. |
||
Multi-coloured LED lightingThe bright multi-coloured LEDs are perfect for setting the tone for your evening. Alternatively, you can put it on colour change mode for a more upbeat, party atmosphere. |
||
Built-in drinks holdersYou will never be far away from your beverage as the Vortex swimspa features non-slip built-in drinks holders, so you don’t have to keep hold of your drink or climb out to take a sip. |
||
SMARTStream Bluetooth Audio System (optional)SMARTStream Bluetooth audio with a sub-woofer. The hidden, state of the art transducer speaker system leaves the spa surfaces clear of obstacles and reduces moving parts. |
||
Neck and shoulder therapy collarsThis Vortex model has a built-in therapy neck collar. This means that not only will your neck and shoulders be cushioned but internal jets will massage and soothe at the same time. |
||
Laminar Jets water featureThe laminar jets smooth and uninterrupted flow of water is both relaxing and mesmerising. It’s also a ‘splash-free’ feature. |
||
Sensual Aromatherapy SystemExclusive to our Vortex models. All you need to do is choose your favourite aromatherapy fragrances out of the 12 available and then enjoy breathing in the relaxing aroma whilst your muscles are being soothed by the powerful jets. |
||
PureZone CD Ozone Water Clarifying SystemThis is one of the safest and most economical ways of cleaning the water as there a no harsh chemicals added to the water and the process doesn’t affect the taste, smell or PH level of the water making it child safe. |
||
Thermabond 4 layer shell constructionAll Vortex model use a 4 layer, 8 step Thermabond lamination process not found in most spas. This process includes the curing of the shell in a temperature and humidity-controlled oven. This is absolutely vital if the shell of the spa is to last the lifetime of ownership. |
||
Dual-layer insulationThe Vortex dual layer insulation covers both the outer cabinet and the shell. This is the most efficient way to insulate. The dual layer system keeps the heat from the pumps and plumbing, reduces noise and provides a warm layer between the water and the outside of the spa. |
||
Built To Last:Permaframe – is a timber-free design, is impervious to rot, mildew or vermin damage and is designed to last indefinitely. Toughbase – is built strong enough to take the weight of the swim spa, water and people. It prevents vermin from getting inside the workings of your spa and is virtually indestructible to ensure years of trouble-free usage.
|
||
Duraflex plumbing – specially designed for use in high-performance swim spas. Duraflex incorporates a coil of rigid PVC within its walls that allows the piping to flex but not kink. |
Specification
Name | Aquagym Max Pro | Aquagym Max Pro Plus | Aquagym Max Extreme |
---|---|---|---|
Size (cm) | 449 x 231 x 130 or 150 | 449 x 231 x 130 or 150 | 449 x 231 x 130 or 150 |
Capacity / Seats | 4 seats | 4 seats | 4 seats |
Jet Pump | 3hp x 2 | 3hp x 3 | 3hp x 4 |
Programmable Circulation Pump | 250W | 250W | 250W |
Swim Flow Rate | 1,200lpm | 1,800lpm | 2,400lpm |
Total Jets (Stainless Steel) | 59 (2 Swim Jets) | 80 (3 Swim Jets) | 81 (4 Swim Jets) |
Spa Controller | Balboa Touch Screen | Balboa Touch Screen | Balboa Touch Screen |
Variable Speed Air Blower | 1,000W | 1,000W | 1,000W |
Variable Output Heater | 3kW max | 3kW max | 3kW max |
Perimeter Insulation | √ | √ | √ |
Dual-layer Insulation | √ | √ | √ |
Intelligent Thermal Tuning | √ | √ | √ |
Thermobond, 4 Layer Shell Construction | √ | √ | √ |
Thermoclad Cabinet | √ | √ | √ |
Purezone Micro Filtration | √ | √ | √ |
Purezone Ozone Water Clarifier | √ | √ | √ |
Purezone UV Water Purifier | √ | √ | √ |
Duraflex Plumbing | √ | √ | √ |
Molded, High Impact Base | √ | √ | √ |
Spa Health Indicator | √ | √ | √ |
Adjustable Aromatherapy | √ | √ | √ |
Water Cascade | √ | √ | √ |
Underwater Flood Lighting | √ | √ | √ |
Lockable Hard Cover | √ | √ | √ |
Neck Therapy Collar | √ | √ | √ |
Stainless Steel Jets | √ | √ | √ |
Backlit Laminar Jets | √ | √ | √ |
Hydroflow Stainless Steel Jets | √ | √ | √ |
Hydroglow Jet and Topside Control Lighting | √ | √ | √ |
Individual Seat Pressure Controls | √ | √ | √ |
Backlit Drink Holders | √ | √ | √ |
Perimeter and Cabinet Lighting | √ | √ | √ |
Hybrid Heat Pump | Optional | Optional | Optional |
Hydravibe Bluetooth Stereo System | Optional | Optional | Optional |
Wifi App-based Remote Control | Optional | Optional | Optional |
Arctic Pack Insulation | Optional | Optional | Optional |
Electrical (max) | 32 amps | 32 amps | 40 amps |
Dry Weight: 1.3 & 1.5 m | 958 / 1135 kg | 1105 / 1185 kg | 1150 / 1215 kg |
Filled Weight: 1.3 & 1.5 m | 7133 / 8924 kg | 7280 / 8974 kg | 7325 / 9004 kg |
Water Volume | 6136 / 7750 Litres | 6136 / 7750 Litres | 6136 / 7750 Litres |
Name | Aquagym Max Pro | Aquagym Max Pro Plus | Aquagym Max Extreme |
Warranty
Warranty | Aquagym Max |
---|---|
Non Pro rata Structural | 10 years |
Non Pro rata Acrylic surface | 5 years |
Acrylic surface | 5 years |
Plumbing, Heater & Jet * | 5 years |
Pump & Equipment * | 2 years |
*First 12 months includes parts and labour cost. After 12 months parts only. Full written details on request.
